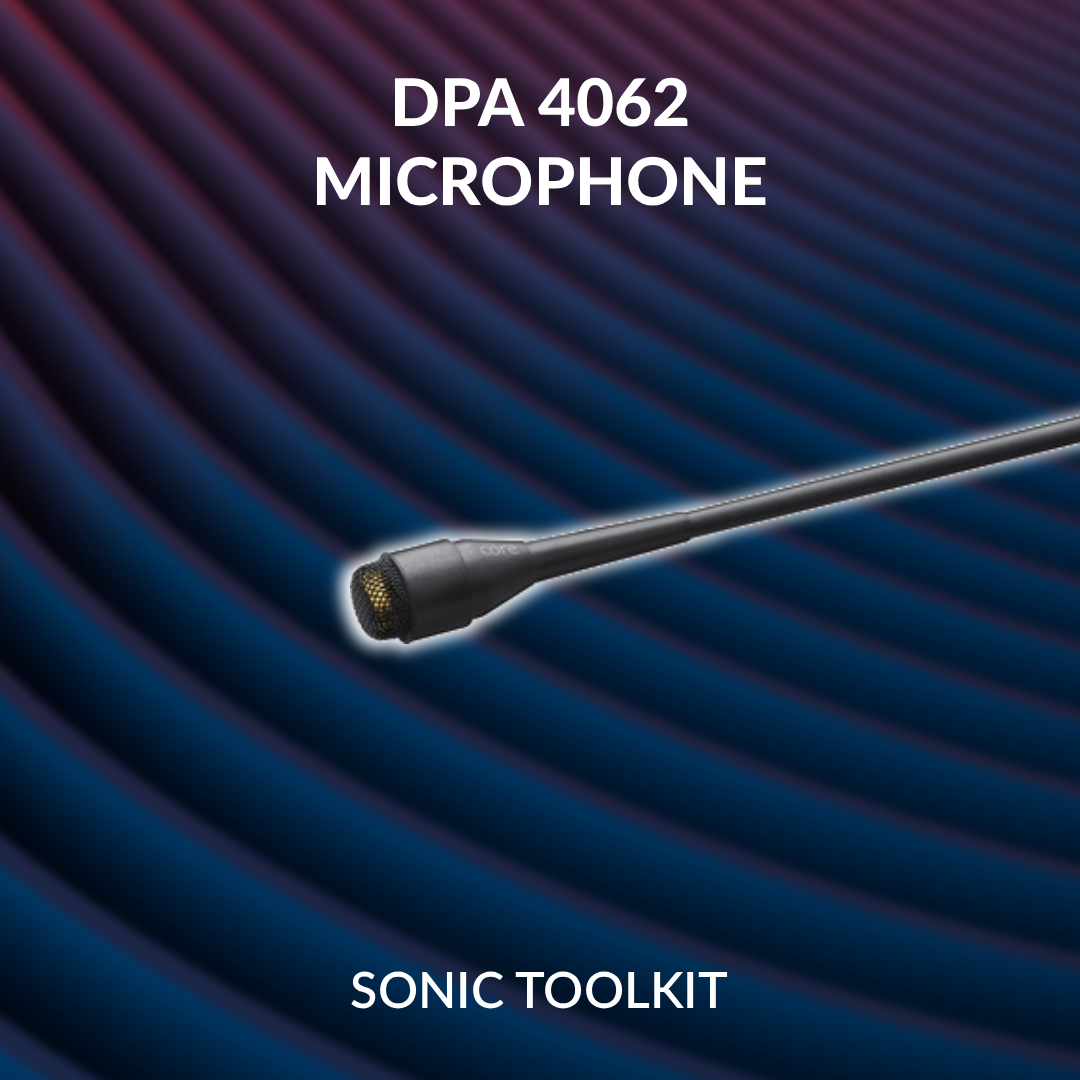

Sonic Toolkit: DPA 4062 Microphone
Recording professional sound effects often means placing microphones in environments that are anything but microphone-friendly. Engines, exhaust systems, racing cars, drums, machinery and other high-energy sources can generate enormous sound-pressure levels.
That is where the DPA 4062 microphone becomes particularly interesting.
Designed specifically for extreme sound-pressure levels, the DPA 4062 combines a remarkably small capsule with the ability to capture exceptionally loud sources. For sound designers, field recordists and production sound professionals, it can be a valuable specialist microphone particularly when recording vehicles and machinery.
DPA 4062 Overview
The DPA 4062 forms part of DPA Microphones' well established 4060 Series of miniature omnidirectional microphones. Unlike a typical lavalier microphone designed primarily for speech, however, the 4062 is optimised for extreme SPL recording.
One of its headline features is the ability to handle sound-pressure levels of up to approximately 154 dB SPL, depending on the configuration and powering system being used. This makes it particularly useful when a microphone needs to be positioned extremely close to a loud sound source.
The microphone uses an omnidirectional pickup pattern, meaning it captures sound from all directions rather than focusing on a narrow area in front of the capsule.
For sound-effects recording, this can be a major advantage. When a microphone is positioned inside an engine bay or mounted underneath a vehicle, achieving perfect microphone orientation isn't always practical. An omnidirectional capsule makes placement considerably more forgiving.
Its tiny physical size is another major benefit.
The DPA 4062 can be mounted in places where conventional microphones simply wouldn't fit, allowing sound designers to capture perspectives that would otherwise be difficult or impossible.
Best Uses for the DPA 4062
Vehicle recording is arguably one of the best applications for the DPA 4062. Its combination of extreme SPL handling and miniature size makes it particularly suitable for:
- Engine bay recordings
- Exhaust recordings
- Air intake sounds
- Performance cars
- Motorcycles
- Motorsport
- Vehicle interior recordings
- Mechanical components
Because the microphone can be mounted extremely close to the source, it can capture detailed mechanical character alongside the power and impact of an engine or exhaust system. For anyone building professional car sound effects libraries, microphones like the DPA 4062 can provide recording perspectives that larger microphones cannot easily achieve.
Industrial sound recording is another strong use case.
Machines, pneumatic tools, manufacturing equipment and mechanical systems frequently generate both high volume and difficult microphone-placement conditions. The small size of the 4062 makes it especially useful in these environments.
Where the DPA 4062 Isn't the Best Choice
The 4062 is very much a specialist microphone. Its lower sensitivity is deliberately designed to accommodate extremely loud sources. Consequently, it wouldn't necessarily be our first choice for recording quiet environments.
For subjects such as:
- Room tones
- Quiet Foley
- Nature atmospheres
- Distant wildlife
- Subtle environmental ambience
a more sensitive microphone with lower self-noise would generally be preferable.
Think of the DPA 4062 less as an everyday field microphone and more as a specialised tool for situations where ordinary microphones struggle.
The Summary
The DPA 4062 probably isn't the first microphone we'd recommend to someone building their first field-recording kit. But once your work involves performance vehicles, exhausts, engines, drums, machinery or other exceptionally loud sources, its advantages become much more obvious.
The ability to position such a small microphone incredibly close to a high-SPL source opens up recording possibilities that simply aren't available with many traditional microphones.
For vehicle sound recording in particular, the DPA 4062 deserves serious consideration. If capturing powerful engines, aggressive exhausts and detailed mechanical sound effects is part of your work, this tiny microphone can become an extremely useful addition to your recording kit.
